Liquid Stone Granite™

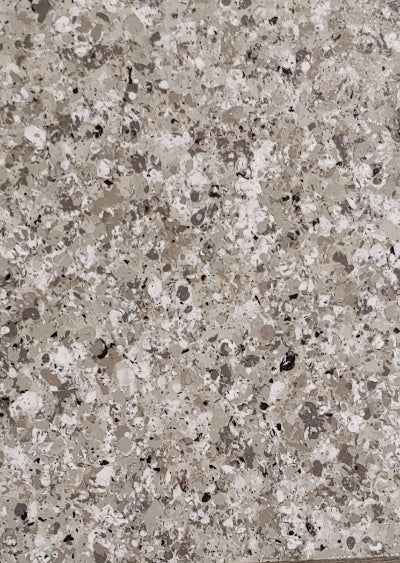

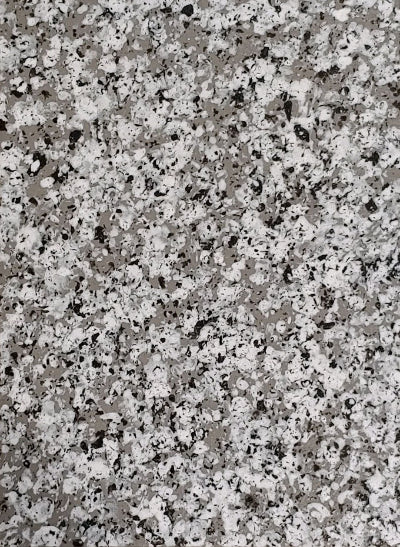

Liquid Stone Granite™ – Countertop Kit Elevate any surface with Liquid Stone Granite™, a sprayable coating that delivers the elegant look of natural granite. This resin-based formula, blended with granite-like coloring, creates a smooth, multi-toned finish ideal for tables, countertops, bar tops, walls and most any surface. Apply with HVLP gun in cross-directional passes to achieve a seamless, smooth granite appearance. Transform your space with this cost-effective, durable alternative to solid granite, offering endless design possibilities.
Liquid Stone Granite™
Features of Liquid Stone Granite™
- Realistic Granite Look: Mimics natural granite with a smooth, multi-toned finish using granite-like coloring.
- Versatile Application: Suitable for tables, countertops, bar tops - virtually any surface.
- Easy to Apply: Sprays on with a HVLP gun in cross-directional passes for even coverage.
- Seamless Finish: Achieves a 40–50 mil wet film thickness, ensuring a smooth granite appearance without joints.
- Non-Hazardous Formula: Safe to use, non-flammable, and environmentally friendly for residential and commercial projects.
- Cost-Effective Alternative: Offers the luxury of granite at a fraction of the cost of solid stone or cultured castings.
- Durable and Long-Lasting: Provides a tough, resin-based coating that withstands daily wear in various applications.
- Customizable Aesthetic: Creates a smooth, natural stone look with options for Poly-Urethane or Epoxy topcoats.
- Indefinite Storage: Can be stored indefinitely when properly sealed, ensuring no waste for future touch-ups.
Liquid Stone Granite™ - Product Data
Coverage Rate:
- 300 sq ft per gallon for countertops, bar tops, walls, (0.04–0.08 inches thickness).
Film Thickness:
- Apply at 40–50 mils wet (0.04–0.05 inches) per coat for opacity and even texture.
Application Layers:
- Requires 4 layers (primer, color coat, granite layer, top coat) for a complete finish.
Drying Time:
- Each layer dries in approximately 2+ hours at 70°F with the exception of epoxy top coat, with a full cure in 24–48 hours.
Water Resistance:
- Rated for 100% moisture resistance after curing, ideal for wet environments.
Shelf Life:
- Liquid Stone Granite™ has an Indefinite shelf life when stored in a sealed container at 50–80°F.

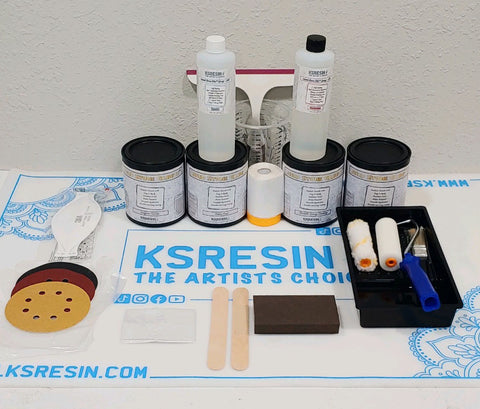

Kit contents - Tools needed
Liquid Stone Granite™ with Poly-Urethane Top Coat
- Surface Primer
- Matching color coat for kit
- Liquid Stone Granite spray coating
- Poly-Urethane top coat
- 2 - 4" roller covers for color coat and top coat application
- 2 sets of PPE gloves
Liquid Stone Granite™ with Liquid Stone Elite Epoxy and Poly-Eurethane Top Coat
- Surface Primer
- Matching color coat for kit
- Liquid Stone Granite spray coating
- Liquid Stone Elite epoxy
- Poly-Urethane top coat
- 2 - 4" roller cover for color coat
- 2 sets of PPE gloves
Tools and supplies needed for installation
- Sand Paper = 80 - 220 grit for surface sanding
- Roller Frame = 4" for supplied roller covers to prime, color coat, top coat
- HVLP Spray Unit/Gun for Liquid Stone Granite™ spray coating
- Paper/Tape for cabinet/floor protection
Application Instructions
Complete Instructions for Applying Liquid Stone Granite™ Spray Coating to Countertops
Overview
This document provides comprehensive, step-by-step instructions for applying a Liquid Stone Granite™ spray coating to countertops, creating a seamless, durable, and aesthetically pleasing granite-like finish. The process involves surface
preparation, applying a primer, a color coat, the Liquid Stone Granite™ coating, and/or Epoxy top coat, Poly-Urethane top coat, followed by inspection and curing. Each step includes descriptions images to illustrate the process visually, aiding in understanding the application process. The coating is suitable for countertops made of laminate, wood, concrete, tiles and other surfaces for both interior and exterior(non-epoxy) applications.
preparation, applying a primer, a color coat, the Liquid Stone Granite™ coating, and/or Epoxy top coat, Poly-Urethane top coat, followed by inspection and curing. Each step includes descriptions images to illustrate the process visually, aiding in understanding the application process. The coating is suitable for countertops made of laminate, wood, concrete, tiles and other surfaces for both interior and exterior(non-epoxy) applications.
Tools and Materials Needed
- **Liquid Stone Granite™ Coating Kit**: Includes primer, base coat, spray granite coating, epoxy or/and urethane topcoat.
- **Spray Equipment**: HVLP spray gun or pressure pot with a #9 nozzle (9/32-inch orifice/2-3mm nozzle) for even application.
- **Personal Protective Equipment (PPE)**: Safety glasses, gloves, respirator mask, and protective clothing.
- **Cleaning Supplies**: Mild dish soap, water, lint-free microfiber cloths, paper towels.
- **Sanding Supplies**: Sandpaper (60-220 grit for preparation, 400-600 grit for smoothing between coats).
- **Masking Supplies**: Painters tape, drop cloths, plastic sheeting, paint pan/roller.
- **Mixing Tools**: Stir sticks and containers.
- **Ventilation**: Fans or open windows for a well-ventilated workspace.
Safety Precautions
- Work in a well-ventilated area using fans or open windows to avoid inhaling fumes.
- Wear PPE (gloves, safety glasses, respirator mask) to protect against skin contact, eye irritation, and aerosol inhalation.
- Keep coating materials away from children, pets, open flames, or heat sources.
- Follow the manufacturer safety data sheet (SDS) for specific handling and disposal instructions.
- Test all products on an inconspicuous area before full application to ensure surface compatibility.
Step-by-Step Instructions
Step 1: Surface Preparation
1. Clean and Sand the Countertop:
- Remove all dirt, grease, grime, and debris using a mild dish soap and water solution.
- Spray or wipe the solution onto the countertop with a lint-free microfiber cloth, rinse thoroughly with clean water, and
dry completely with paper towels.
- For stubborn stains, use a non-abrasive cleaner safe for the surface.
- Lightly sand the surface with 60-220 grit sandpaper to remove gloss and create a slightly rough texture for better
adhesion.
- For glazed surfaces (e.g., laminate, ceramic tiles), ensure a product-specific primer is used for compatibility(included).
- Wipe away sanding dust with a damp microfiber cloth and dry thoroughly.
.
2. Mask Surrounding Areas:
- Apply painters tape and plastic sheeting to protect adjacent areas (e.g., backsplash, sink, cabinets).
- Cover the floor with drop cloths to catch overspray.
3. **Test the Surface (for Stone Countertops)**:
- For natural stone countertops (e.g., granite, marble), perform a water test to check porosity. Pour a 3-inch diameter pool
of water on the surface and let it sit for 30 minutes. A dark mark or ring indicates porosity, requiring sealing after coating.
Step 2: Apply Primer Coat
1. **Prepare the Primer**:
- Stir or mix the primer thoroughly.
2. **Apply the Primer**:
- Apply the primer with a paint roller making sure to cover all surface area.
- Allow the primer to dry until touch-dry. Test dryness by lightly touching an inconspicuous area.
.
Step 3: Apply Color Base Coat
1. **Color Base Coat**:
- Mix the base coat thoroughly to ensure consistency.
2. **Apply the Color Base Coat**:
- Load the base coat into a paint pan and roll on the color base coat in 2 coats waiting between coats until touch-dry.
- Avoid excess buildup in corners or near edges, especially around sinks or overflows, to prevent drips.
3. **Sand Between Coats (Optional)**:
- For a smoother finish, lightly sand with 400-600 grit sandpaper between coats and wipe away dust with a damp cloth.
.
Step 4: Apply Liquid Stone Granite™ Coating
1. **Prepare the Liquid Stone Granite™ Coating**:
- Stir the Liquid Stone Granite™ coating slowly for at least 2 minutes to evenly distribute the granite flakes.
2. **Apply the Liquid Stone Granite™**:
- Load the coating into the spray gun.
- Spray 12-15 inches from the countertop in multiple cross-directional passes to achieve an even, granite-like texture.
- Apply 2-3 layers, depending on desired opacity and texture.
3. **Inspect the Finish**: Make sure the coating has consistant coverage.
.
Step 5: Sand Coating
- To make the Liquid Stone Granite™ spray coating smooth, lightly sand the coating with 220 grit sand paper making sure to
not sand through the coating on the eges. Recommend - sand the edges with a spong sanding block, so that you will not sand through the coating.
.
Step 6: Apply Epoxy Top Coat (optional)
1. **Prepare the Epoxy Top Coat**:
- Mix the topcoat thoroughly according to the product instructions. (application instructions here)
2. **Apply the Epoxy Top Coat**:
- Pour out epoxy onto countertop with 2oz per sq ft, evenly spread and let the epoxy self level making sure to re-roll
backsplash to achieve a light coat. Making sure to not puddle epoxy at the backsplash areas.
- Allow the epoxy top coat to level. (Optional) Use propane torch to remove micro-bubbles form the surface and help level
the epoxy.
- Allow 24 hours for curing at 77-81°F before light use, keeping the surface dry and free from staining
substances (e.g., oils, wine) for 7 days.
Step 7: Apply Poly-Urethane Top Coat
- For added durability, apply 1-2 coats of clear Poly-Urethane over the top coat after it has fully cured (typically 24 hours).
- Roll onto the surface in long, sweeping motions, ensuring even coverage, making sure to not leave roller
marks or puddling.
- Allow each coat to dry (at least 2 hours) at 77-81°F for best results.
Step 8: Final Inspection and Curing
1. **Inspect the Finish**:
- Examine the countertop for even texture, color consistency.
- Check for imperfections like haze, uneven spots, or missed areas. If haze appears, apply additional topcoat.
- Ensure the granite effect looks natural, with evenly distributed flakes and no bald spots.
2. **Cure the Coating**:
- Allow the entire coating system to cure for at least 24 hours at 77-81°F before light use (e.g., placing
objects on the surface).
- Avoid exposing the countertop to water, oils, or chemicals for 48-72 hours(7 days recommended) to ensure full curing and maximum durability.
Maintenance Tips
- **Clean Regularly**: Use a mild dish soap and water solution with a soft cloth for routine cleaning. Avoid abrasive
cleaners to prevent scratching the coating.
- **Wipe Spills Immediately**: Clean spills promptly with a damp cloth to prevent staining, especially from acidic
substances like wine or lemon juice.
- **Reapply as Urethane as Needed**: Every 6-12 months, perform a water test to check the seal. If water absorbs within
20 minutes or wear is visible, reapply the topcoat following the same application steps.
Notes
- **Coverage**: A quart can of Liquid Stone Granite™ coating typically covers a standard kitchen countertop (check
listing specifications for exact coverage rates).
- **Storage**: Store unused coating in a cool, dry place (>65°F) to maintain shelf life.
- **Customization**: Experiment with masking tape for unique designs (e.g., geometric patterns or borders) before
applying the Liquid Stone Granite™ layer.
